Setting up a Libre Computer Sweet Potato SBC with Debian and Pi-Hole
I've been wanting to get a Raspberry Pi for ages, but they were out of stock for the longest time, so I never ended up with one. Recently I learned about the Le Potato from Libre Computer as a Pi-alternative, and after some research paid the $30 early access price for their new Sweet Potato SBC. Here's how I set it up.
Table of Contents
WTF is Libre Computer and Sweet Potato?
Libre Computer Project is a crowdfunded designer of single-board computers which effectively are alternatives to Raspberry Pi. Amongst their products is the Le Potato which is equivalent in features to a low-end Raspberry Pi 3B, which some slight differences.

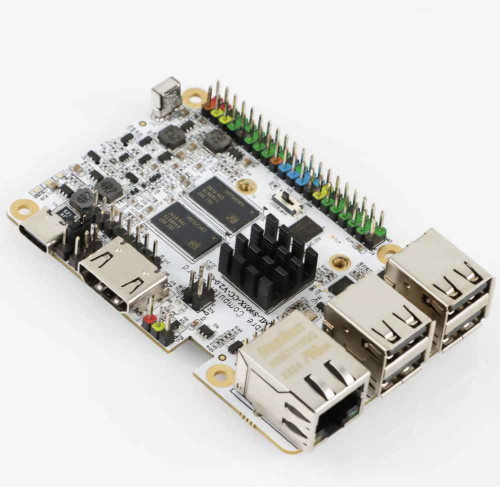

In September 2023 they came out with a new revision known as the “Sweet Potato” with a few minor upgrades. (See here for a product page with the differences.) I took the plunge and ordered it from LoveRPi and it arrived a week later.
Booting up Debian 12 Bookworm off a USB stick
Libre’s Sweet Potato is so new, I couldn’t find much in the way of documentation or instructions for it. However it’s so similar to the Le Potato that those instructions appear to work just fine. One exception seemed to be about booting from a USB drive — it says here that the AML-S905X-CC (Le Potato) cannot boot from USB without additional configuration, and the newer AML-S905X-CC-V2 (the Sweet Potato I have) is not mentioned. I took a shot in the dark hoping that it would just boot from a USB stick anyway, and turns out it did!
First I found the latest release of Debian 12 base image and downloaded the arm64 package. This comes as a .img.xz file but there’s no need to extract it, using Rufus I just created a bootable USB drive right from the archive file.
I plugged it into the top-left USB port on the Sweet Potato (pretty sure any of the four USB ports will do), then plugged in the USB-C power supply, which does not come in the box, but I used a 5V 3A charger from an old Samsung phone and it works perfect. Sweet Potato turned on and automatically ran Debian from the USB, it was up and running in a few minutes. Look at the lights on the back of the Sweet Potato, you should see a blue light blinking steadily and a solid green light.
Booting up Debian 12 Bookworm off a Micro SD card
The process will be identical to a USB stick, but we’ll use Rufus to flash the Debian 12 image onto a Micro SD card instead. You’ll need a Windows PC with some way of reading and writing to a Micro SD card — most likely that will be through a built-in SD Card Reader, putting the Micro SD card into a SD adapter which then goes into the slot. (Alternately, I use this $6 USB Card Reader thing from Amazon.)
Just open Rufus, choose the Micro SD card from the choices, and pick the same Debian 12 image already downloaded. Hit start and when it’s done, pop in the Micro SD card into the slot in the back of the Sweet Potato. Plug in the USB-C power supply and the Sweet Potato should boot into Debian after a few minutes. Again, look for the blinking blue light and solid green light on the back of the unit.
Updating, configuring, and installing packages
For the next section I consulted Libre’s post on Debian 11 and 12. SSH is disabled by default, so I had to plug in a monitor to continue setting up the Sweet Potato. (This is specifically the Debian base image — all Ubuntu releases come with SSH enabled from the start for a totally headless setup, so keep that in mind when choosing your image).
The default username and password for Debian are both root, though you are prompted to change the root password immediately. I also went ahead and set up my main user with adduser ariel, installed sudo (not included with Debian) with apt install sudo and then added my new user to the sudo group with adduser ariel sudo.
We can now logout of root and login with the new admin user, which requiring adding sudo before every command that needs root escalation. First things first, making sure Debian is up to date with apt update && apt full-upgrade -y.
After any upgrades, I then installed Sudo and SSH so I can go headless and work through SSH.
sudo apt install ssh sudo -y
Next add a new user with adduser ariel and following the prompts, then make it an administrator by adding to the sudo group with adduser ariel sudo. One last thing, I changed the hostname (by default it is aml-s905x-cc) by using hostnamectl set-hostname potato to set the new hostname to potato.
At this point I like to reboot and login via SSH from another machine. Make sure to copy over the SSH key pair from whatever machine you’re using with ssh-copy-id ariel@<IP-of-sweet-potato>.
Installing and configuring Pi-Hole
For now I just wanted to test this out as a secondary Pi-Hole, in case I reboot or shut off my home server which runs the main Pi-Hole instance as a Docker container. For the Sweet Potato, I decided to go bare metal and basically followed my own guide on setting up Pi-Hole, using the auto-install script with curl -sSL https://install.pi-hole.net | bash. I also made sure to change the random generated password with pihole -a -p newpassword.
Since I already had an instance of Pi-Hole running on another host, I used Gravity Sync to push the configuration from there onto the new Pi-Hole instance in the Sweet Potato — first by installing and setting it up on both hosts with curl -sSL https://raw.githubusercontent.com/vmstan/gs-install/main/gs-install.sh | bash, then on pushing the config from the original Pi-Hole to the Sweet Potato with command gravity-sync push. Finally I set it to regularly auto-sync the Pi-Holes with gravity-sync auto.
Now that all my ad lists, DNS records and other settings are on the Sweet Potato’s Pi-Hole instance, I wanted to set up DNS over TLS with Unbound. My main instance of Pi-Hole uses cloudflared for DNS over HTTPS, so I figured why not change it up here. (Someday I may keep this as the only Pi-Hole and remove the container instance from my home server, since it doesn’t really need to be on 24/7 otherwise.)
I followed the official Pi-Hole docs instructions for using Unbound as a recursive DNS server to the letter, and had everything up and running within 5 minutes. In short:
- Install Unbound via the Debian package manager:
sudo apt install unbound -y
- Create a new file at
/etc/unbound/unbound.conf.d/pi-hole.confand copy/paste the below into it:
server:
# If no logfile is specified, syslog is used
# logfile: "/var/log/unbound/unbound.log"
verbosity: 0
interface: 127.0.0.1
port: 5335
do-ip4: yes
do-udp: yes
do-tcp: yes
# May be set to yes if you have IPv6 connectivity
do-ip6: no
# You want to leave this to no unless you have *native* IPv6. With 6to4 and
# Terredo tunnels your web browser should favor IPv4 for the same reasons
prefer-ip6: no
# Use this only when you downloaded the list of primary root servers!
# If you use the default dns-root-data package, unbound will find it automatically
#root-hints: "/var/lib/unbound/root.hints"
# Trust glue only if it is within the server's authority
harden-glue: yes
# Require DNSSEC data for trust-anchored zones, if such data is absent, the zone becomes BOGUS
harden-dnssec-stripped: yes
# Don't use Capitalization randomization as it known to cause DNSSEC issues sometimes
# see https://discourse.pi-hole.net/t/unbound-stubby-or-dnscrypt-proxy/9378 for further details
use-caps-for-id: no
# Reduce EDNS reassembly buffer size.
# IP fragmentation is unreliable on the Internet today, and can cause
# transmission failures when large DNS messages are sent via UDP. Even
# when fragmentation does work, it may not be secure; it is theoretically
# possible to spoof parts of a fragmented DNS message, without easy
# detection at the receiving end. Recently, there was an excellent study
# >>> Defragmenting DNS - Determining the optimal maximum UDP response size for DNS <<<
# by Axel Koolhaas, and Tjeerd Slokker (https://indico.dns-oarc.net/event/36/contributions/776/)
# in collaboration with NLnet Labs explored DNS using real world data from the
# the RIPE Atlas probes and the researchers suggested different values for
# IPv4 and IPv6 and in different scenarios. They advise that servers should
# be configured to limit DNS messages sent over UDP to a size that will not
# trigger fragmentation on typical network links. DNS servers can switch
# from UDP to TCP when a DNS response is too big to fit in this limited
# buffer size. This value has also been suggested in DNS Flag Day 2020.
edns-buffer-size: 1232
# Perform prefetching of close to expired message cache entries
# This only applies to domains that have been frequently queried
prefetch: yes
# One thread should be sufficient, can be increased on beefy machines. In reality for most users running on small networks or on a single machine, it should be unnecessary to seek performance enhancement by increasing num-threads above 1.
num-threads: 1
# Ensure kernel buffer is large enough to not lose messages in traffic spikes
so-rcvbuf: 1m
# Ensure privacy of local IP ranges
private-address: 192.168.0.0/16
private-address: 169.254.0.0/16
private-address: 172.16.0.0/12
private-address: 10.0.0.0/8
private-address: fd00::/8
private-address: fe80::/10
- Create a config file at
/etc/dnsmasq.d/99-edns.confand copy/paste in the below:
edns-packet-max=1232
- Start the recursive server and test it:
sudo service unbound restart
dig pi-hole.net @127.0.0.1 -p 5335
- Optional: If using DNSSEC, test validation:
dig fail01.dnssec.works @127.0.0.1 -p 5335
dig dnssec.works @127.0.0.1 -p 5335
The first command should give a status report of SERVFAIL and no IP address. The second should give NOERROR plus an IP address.
Finally, go on the Pi-Hole web admin UI go to Settings -> DNS and under Upstream DNS servers uncheck everything and check Custom DNS (IPv4), type in 127.0.0.1#5335 and click the Save button.
The docs continue with instructions for disabling resolvconf.conf but I didn’t find it necessary, the service was not present on this install of Debian 12 Bookwork on the Sweet Potato. After this Pi-Hole is good to go, so I added it as secondary DNS in my router’s DHCP settings. It’s been about a month and a half, and everything continues to work as intended, the Sweet Potato hasn’t had a single hiccup that I have noticed.
If you’d like a low wattage Raspberry Pi alternative, then in my opinion Libre’s Sweet Potato SBC is a worthy choice for $30 on Amazon.
